01 / PRINTING
UV ball-panel printer
Digital printing equipment in the artwork production area.
RAWRR / WORKSHOPS & EQUIPMENT
Many machines.
One connected factory.
From the first panel to the finished ball. Explore the workshops, processes and production lines behind your project.
ON THE FACTORY FLOORBrowse equipment ↓
THE FACTORY, ORGANIZED
Every workshop
has a part to play.
Equipment is organized by the work it performs. The route through these areas varies with the ball construction and artwork.
A CLOSER LOOK
Built around
the work.
Explore real photographs from our workshops. Select an area to see the equipment, workstations and handling systems used there.
33 equipment & process areas
02 / PRINTING

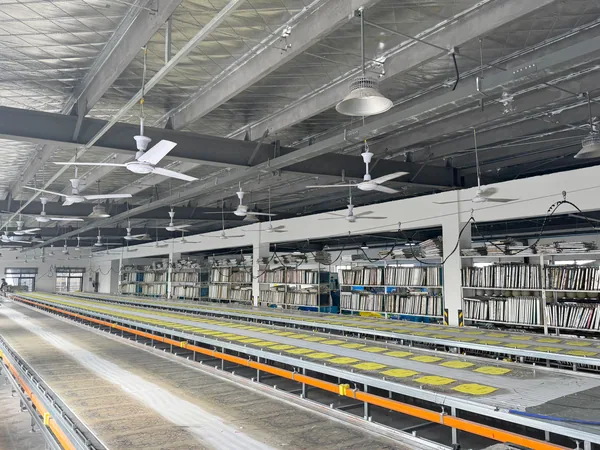

Screen-printing tables
Long printing tables used for ball-panel artwork.
03 / CUTTING
Vision-guided panel cutter
Visual positioning and panel preparation at the cutting station.
04 / LINES

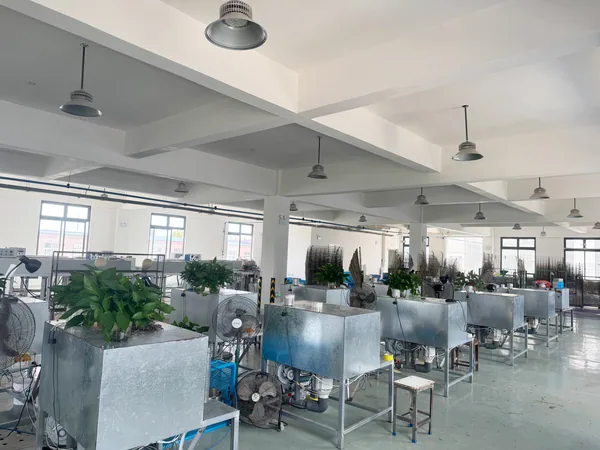

Hand-laminated ball workstations
Workstations for the hand application of ball panels.
05 / LINES

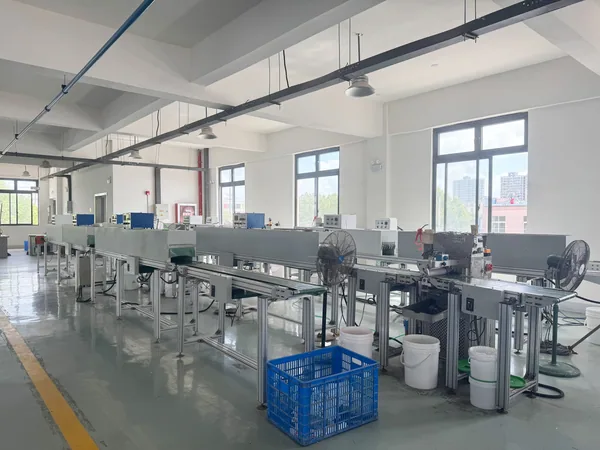

Panel gluing machines
Preparing outer panels for the bonding operation.
06 / CARCASS

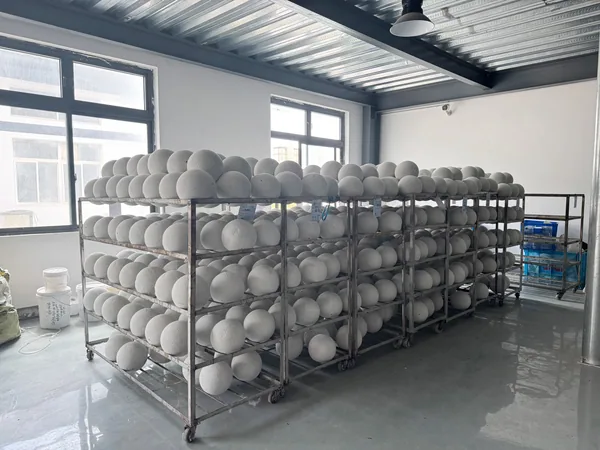

Carcass inspection racks
Prepared carcasses arranged for inspection and handling.
07 / CARCASS
Low-temperature curing
Curing equipment within the ball production workshop.
08 / CARCASS

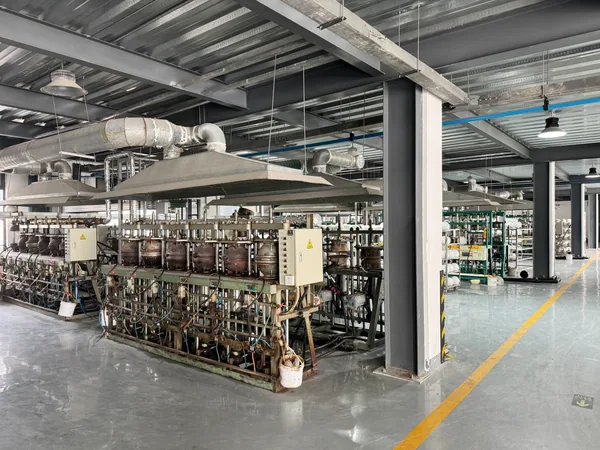

Water-filled carcass vulcanizing
The photographed vulcanizing machine and its surrounding work area.
09 / INSPECTION

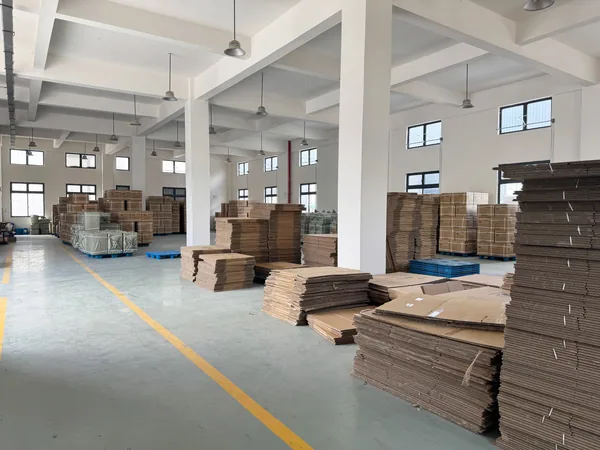

Finished goods warehouse
Cartons and finished orders stored before dispatch.
10 / LINES

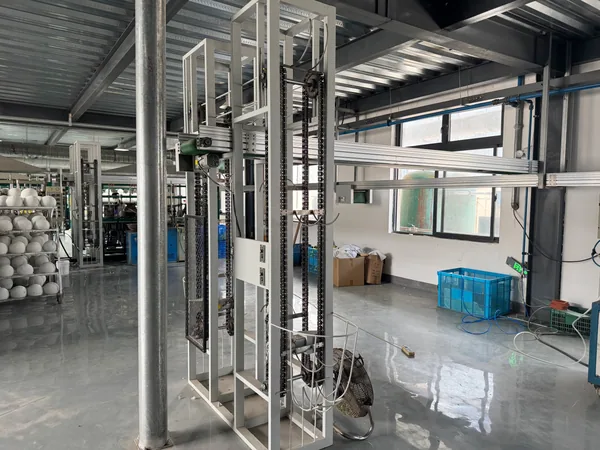

Lift and conveyor system
Moving work between levels and connected production areas.
11 / LINES

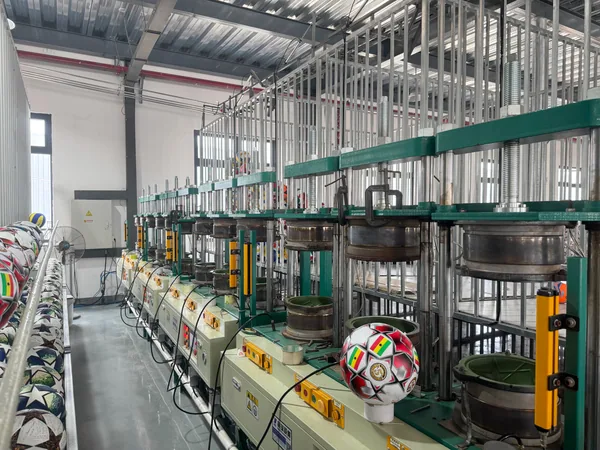

Ball shaping equipment
Equipment used for shape setting during finishing.
12 / PRINTING

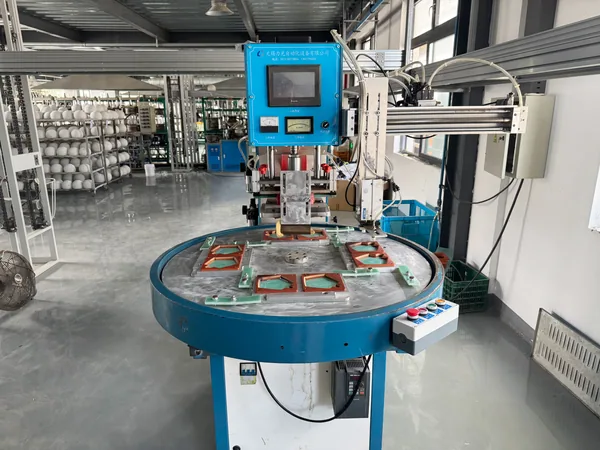

Rotary embossing workstation
A rotary worktable for the high-frequency embossing process.
13 / PRINTING

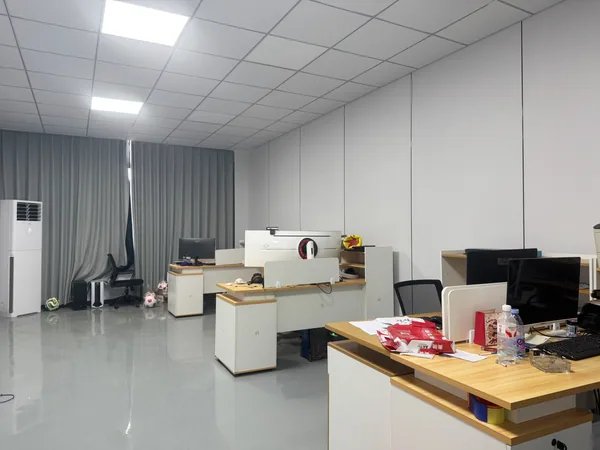

Design & artwork office
Workspace for preparing designs and reviewing artwork.
14 / INSPECTION

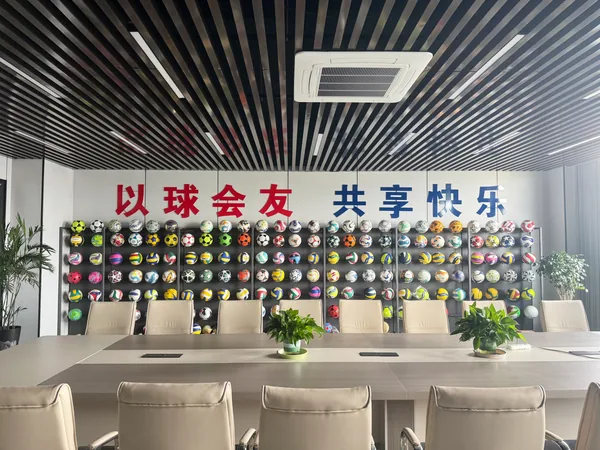

Sample display & meeting room
A space to compare ball samples and discuss project details.
15 / CUTTING
Raw material racks
Rolls and sheet materials organized before production.
16 / CARCASS

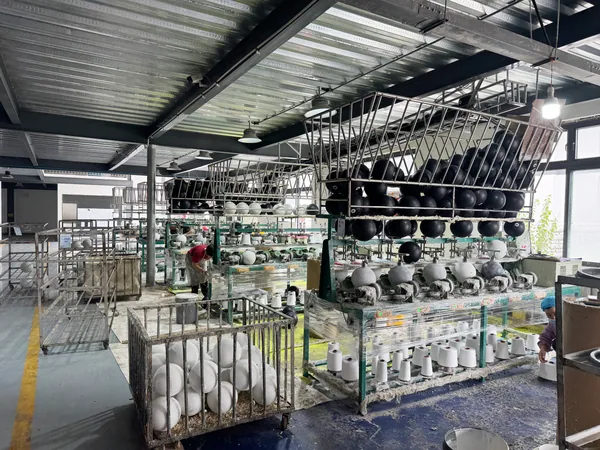

Winding machine
Winding equipment in the carcass workshop.
17 / INSPECTION

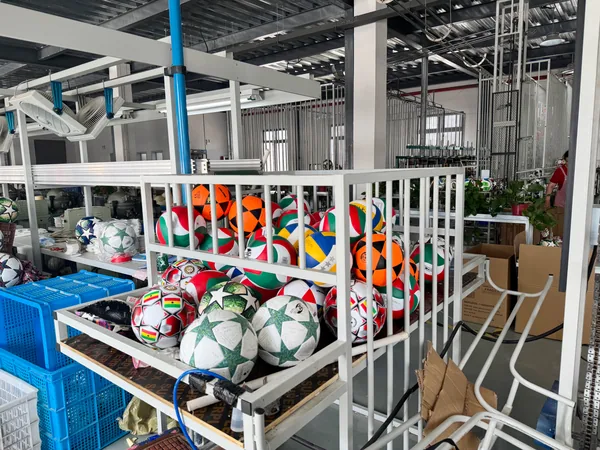

Fixed inspection station
A dedicated station for reviewing finished balls.
18 / INSPECTION

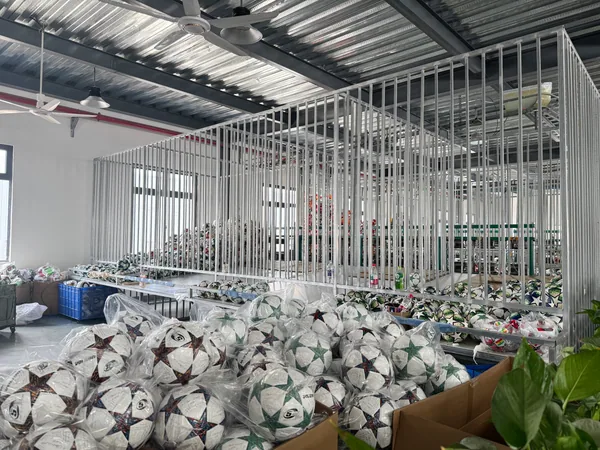

Cleaning and inspection racks
Product holding near the cleaning and inspection area.
19 / INSPECTION
Oven and shrink-wrapping tunnel
The packing tunnel and adjacent carton preparation area.
20 / INSPECTION

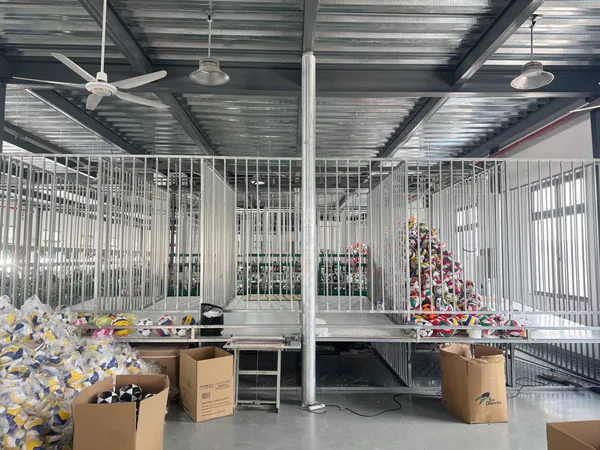

Air-retention holding racks
Balls arranged for holding and air-retention review.
21 / LINES

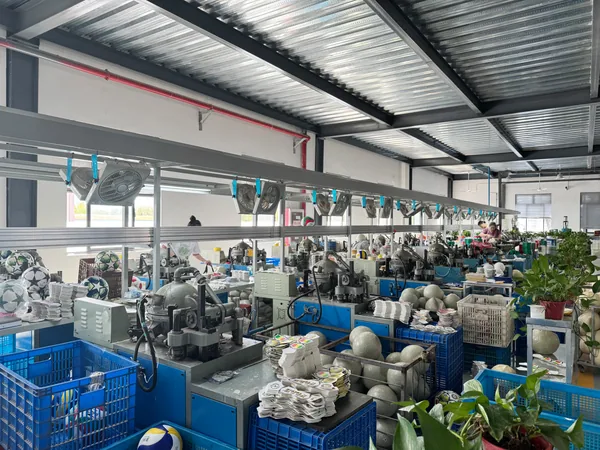

Laminated ball production line
A view along the workstations, showing panel assembly in progress.
22 / INSPECTION
Warehouse forklift
Material and pallet handling in the warehouse.
23 / INSPECTION

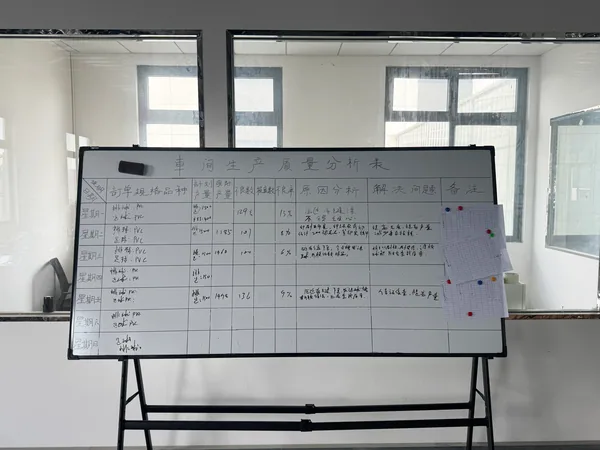

Production review board
A visual board for discussing production issues and follow-up.
24 / CUTTING

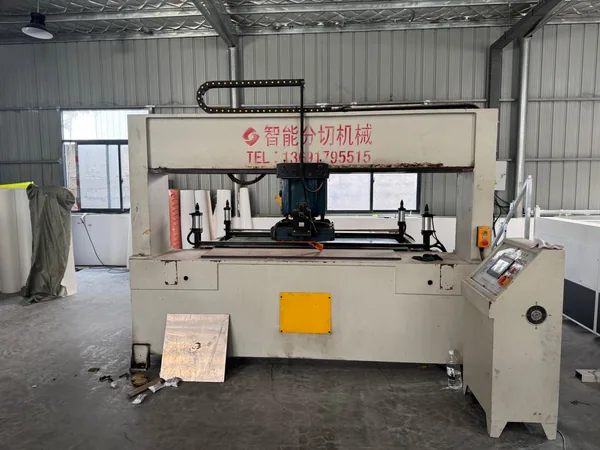

Material slitting machine
Preparing material strips for the next operation.
25 / CUTTING
Roll material staging
Temporary roll storage close to the preparation area.
26 / CARCASS

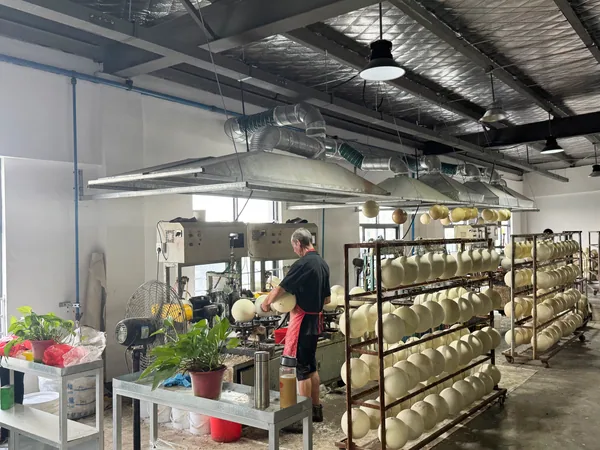

Carcass gluing station
Applying adhesive to the prepared ball structure.
27 / CUTTING

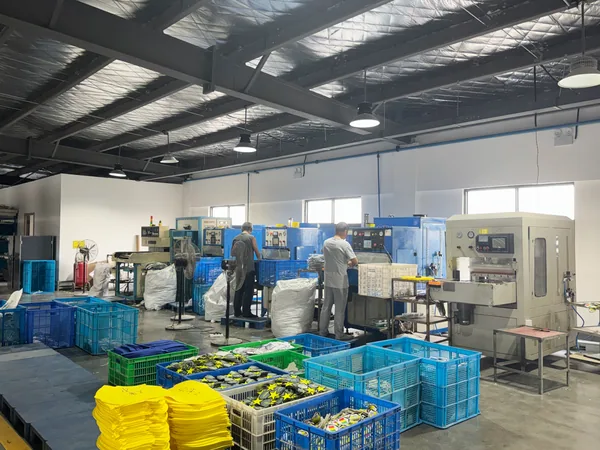

High-frequency cutting machines
A group of high-frequency machines in the cutting workshop.
28 / CARCASS

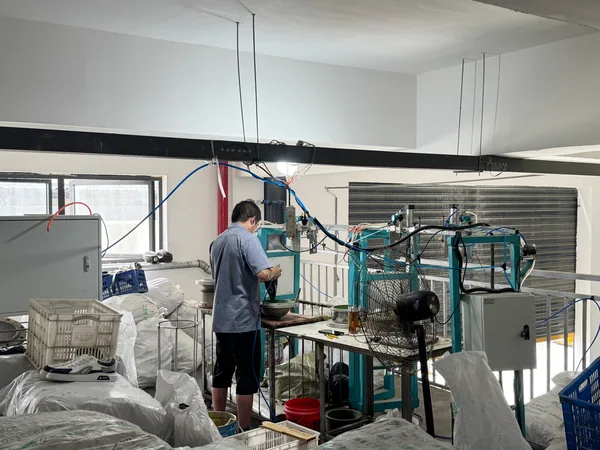

Controlled-pressure bladder inflation
Inflation equipment used during bladder preparation.
29 / INSPECTION

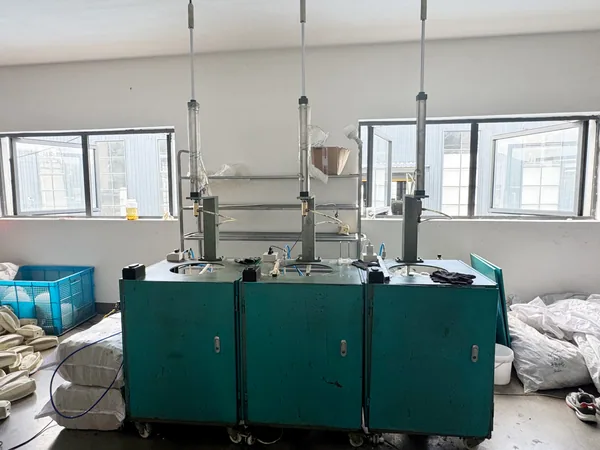

Ball deflation machine
Deflation equipment used according to the packing requirements.
30 / PRINTING

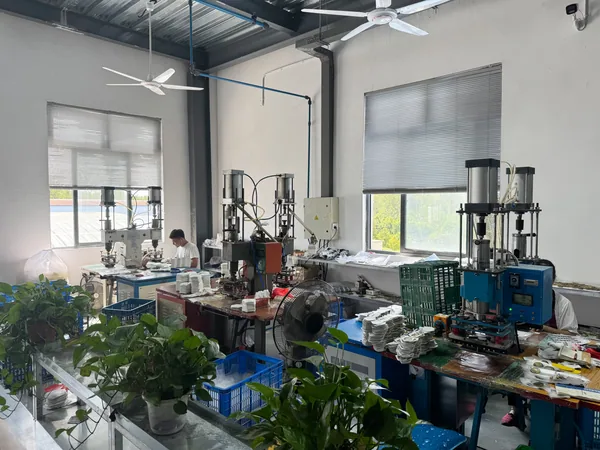

High-frequency embossing
Surface-detail processing at the embossing workstation.
31 / CUTTING
Panel skiving machine
Material thickness and edge preparation at the skiving station.
32 / CUTTING
Long-bed cutting press
A wider working area for material and die positioning.
33 / CUTTING

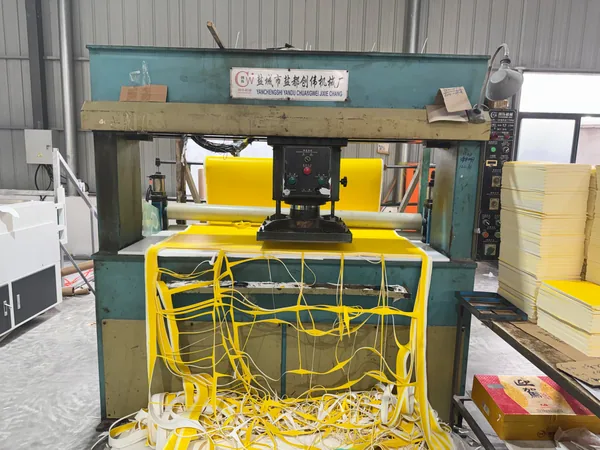

Hydraulic cutting press
Press cutting with the selected tooling and material.
MORE THAN A SINGLE LINE
Different balls.
Different routes.
The ball type, panel structure and finish determine the production route. We review the relevant line with your project requirements.
MATCH THE PROCESS TO THE PROJECT
Let’s find
your production route.
Tell us the ball type, construction, artwork and intended use. We’ll discuss the workshop capabilities relevant to your order.
